EASY ASSEMBLY

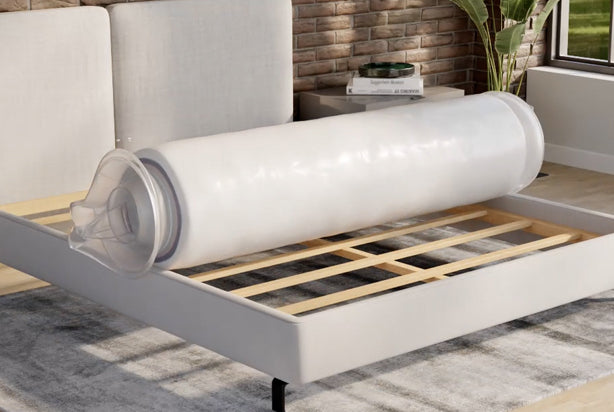

Remove the compressed and rolled mattress from Box 1 and place on your adjustable base, platform bed frame or foundation.

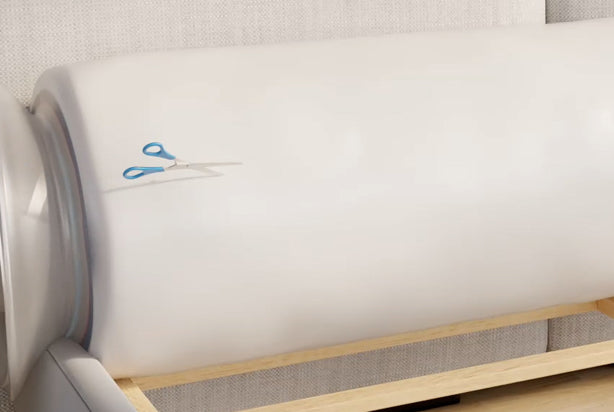

Cut the vacuum-sealed plastic around the mattress and unroll. Avoid using sharp tools that may damage the material.

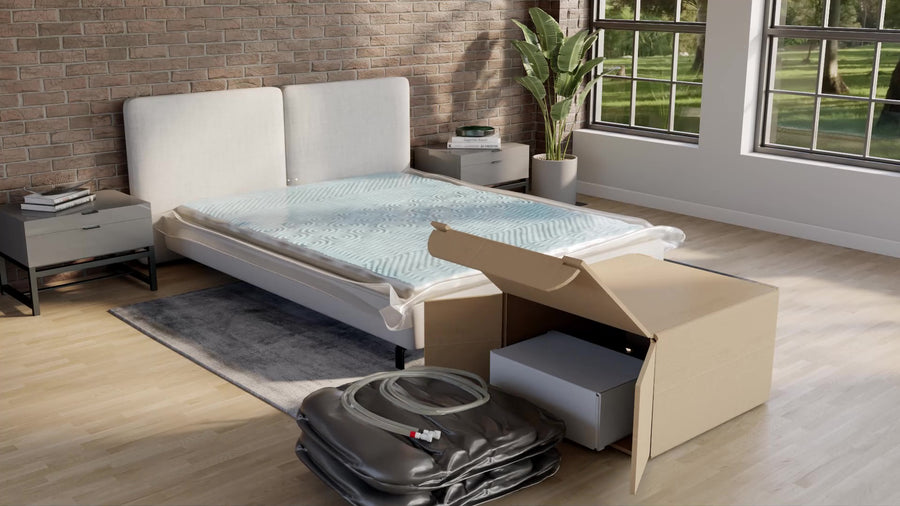

Remove the air cores, air processor and hand controls from Box 2.

Allow the mattress to expand fully in less than one hour.

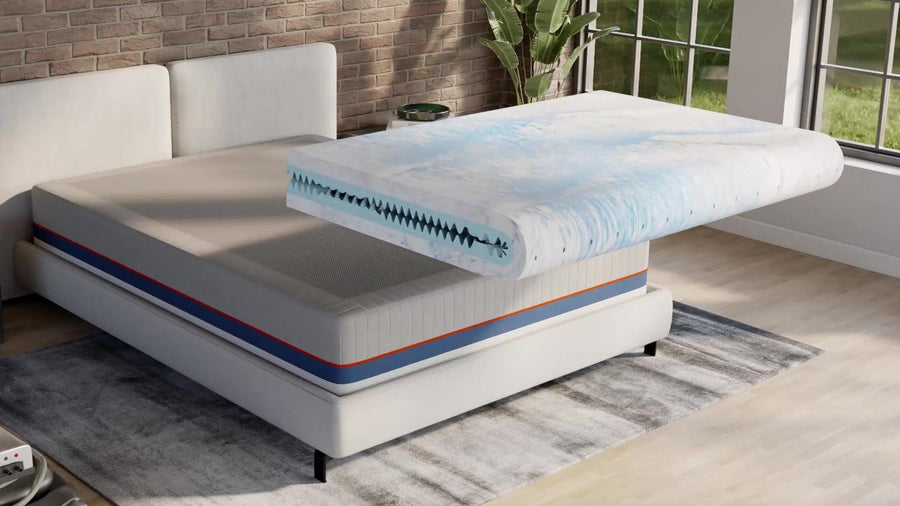

Remove the plastic cover and set aside the foam comfort layer to install at a later step.

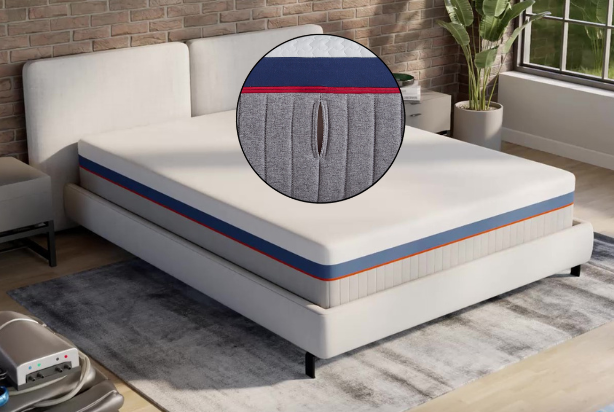

Center expanded mattress on your foundation or frame with the opening in the cover for the air hoses at the head of the bed and the cover zipper pulls at the foot of the bed.

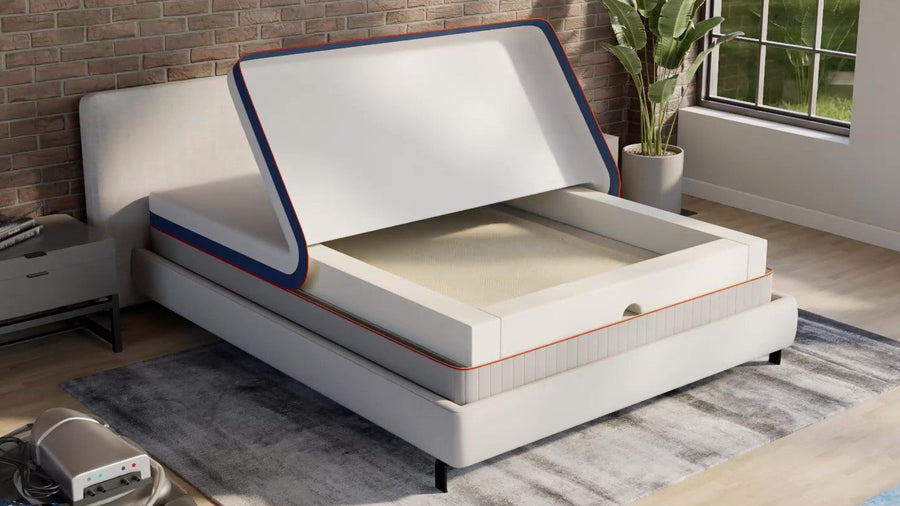

No need to take the cover off. Unzip and roll the cover to the head of the mattress.

Remove the fire barrier and set it aside to install at a later step.

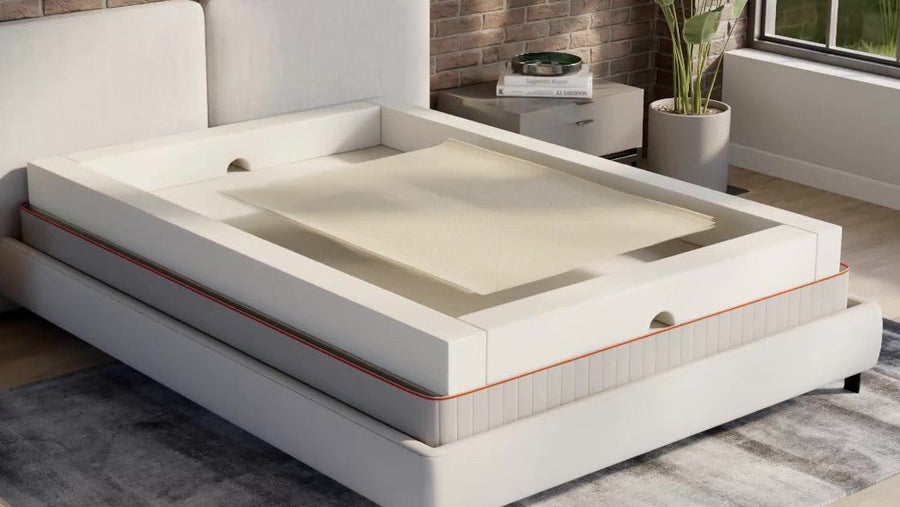

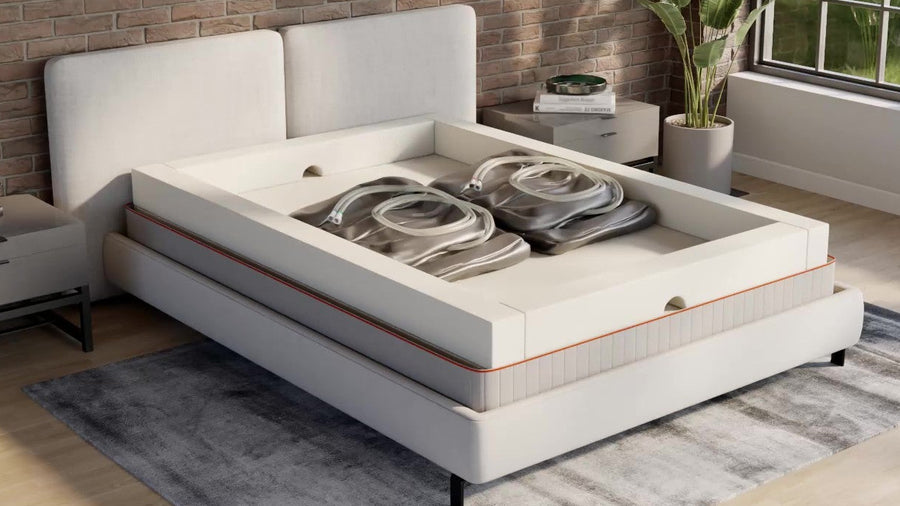

Place the two uninflated air cores side by side in the support tray and ensure the hoses face the head of the bed.

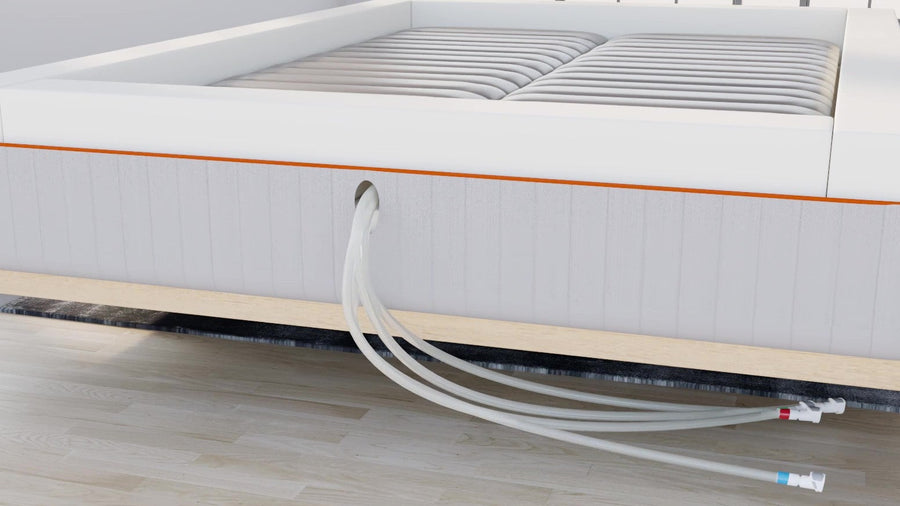

Insert the air hoses through the hole at the head of the bed. Make sure hoses are not kinked. All excess hose should be pulled through the opening. A 2-Zone Smart Zone Bed will only have 2 hoses.

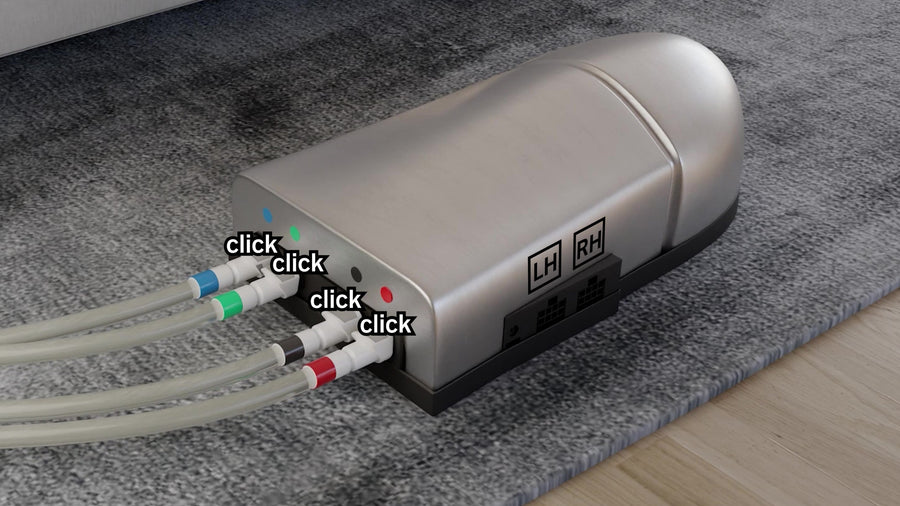

Place air processor under the hoses protruding from head of bed. Connect color coded hoses to the corresponding color coded nozzles on the processor. Hoses will 'click' when securely connected. A 2-Zone Smart Zone Bed will only have two color coded hoses.

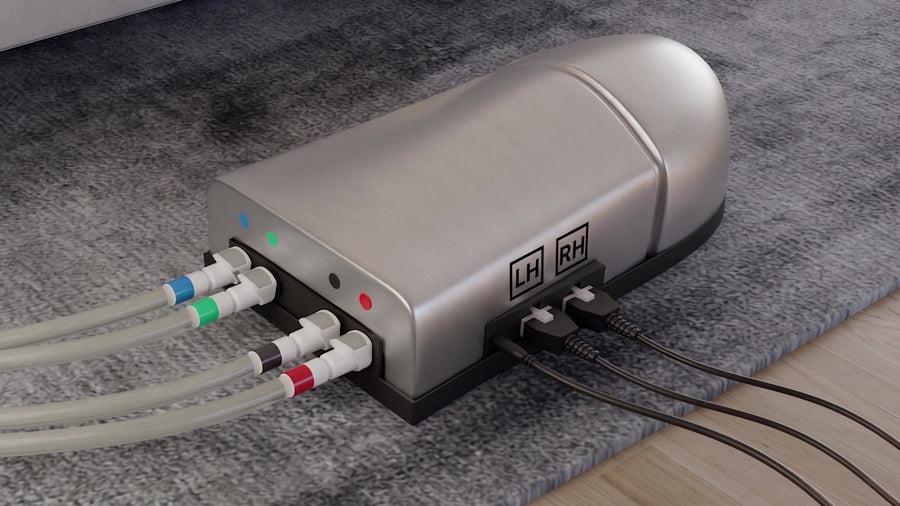

Attach one hand control to the 'LH connector and one to the 'RH' connector on the air processor. Plug the processor into a surge protector.

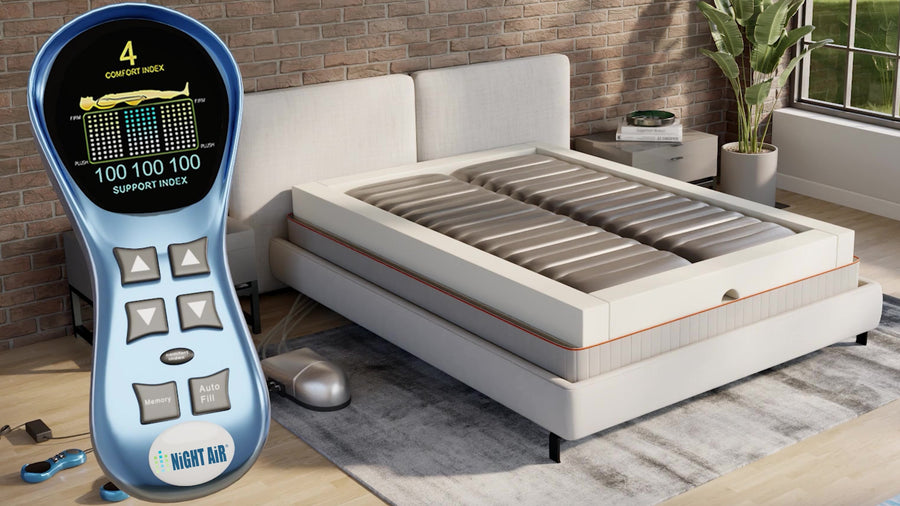

Fully inflate the air cores by pressing the auto fill button on each control. Standing at the foot of the bed the 'LH' control operates the left side and the 'RH' control operates the right side of the bed.

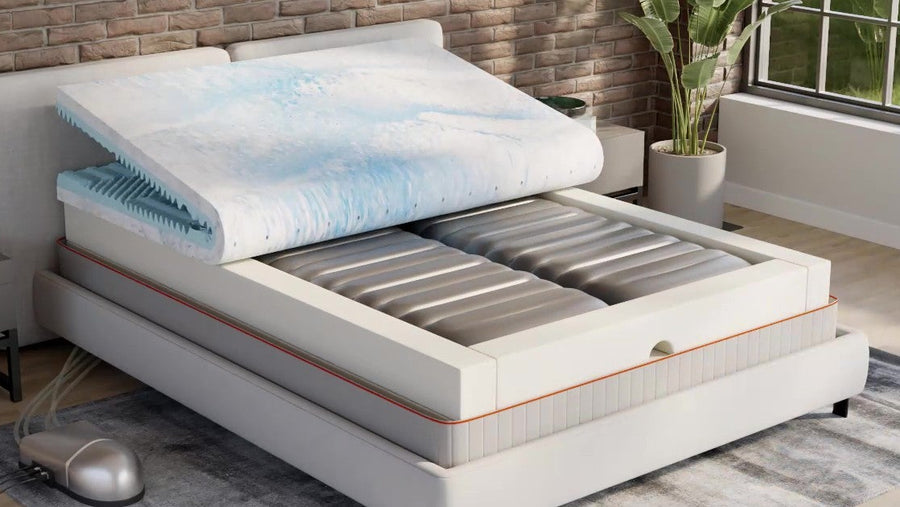

Recenter the air cores inside the foam support tray. Then return the foam comfort layer to the top of the inflated air cores. Make sure the foam comfort layer is centered on top of the air cores.

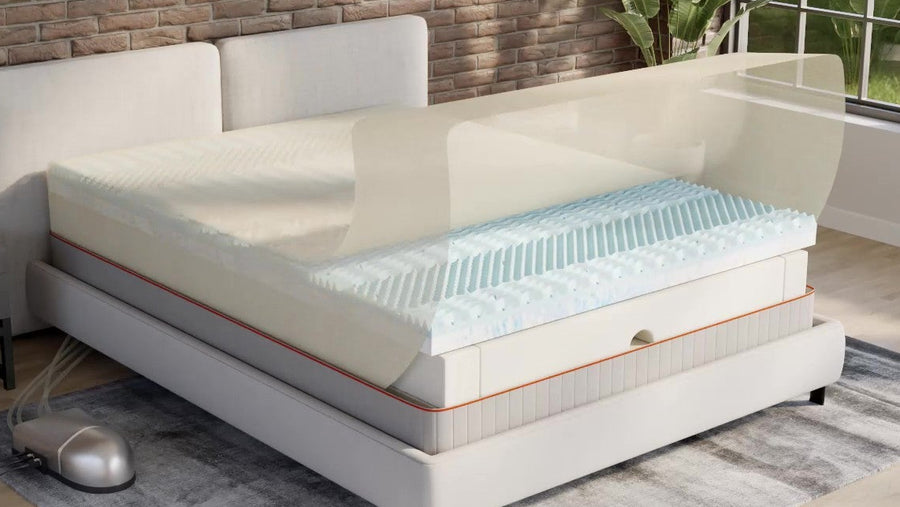

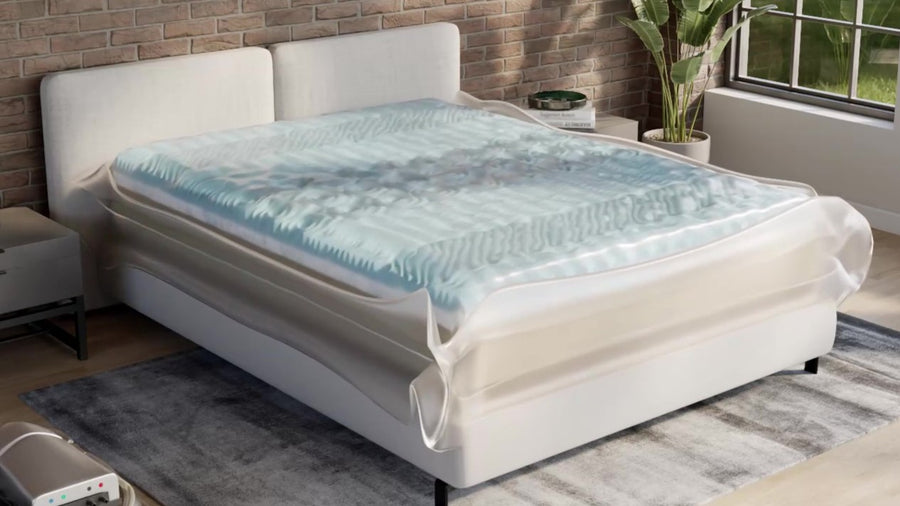

Cover the foam comfort layer with the fire barrier down to the support tray, and make sure the elastic bands of the fire barrier cover are tucked under the entire foam support tray to prevent bunching.

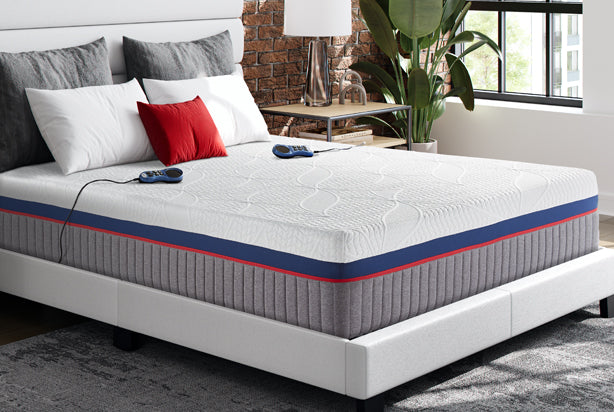

Pull the top cover back over the fire barrier and re-zip into place. You are now ready to enjoy your new Night Air Smart Zone Bed. Please allow up to 72 hours for the foam to completely expand to its original size and shape.
